TPS5430DDA
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS5430DDA
Datasheet:
Description:

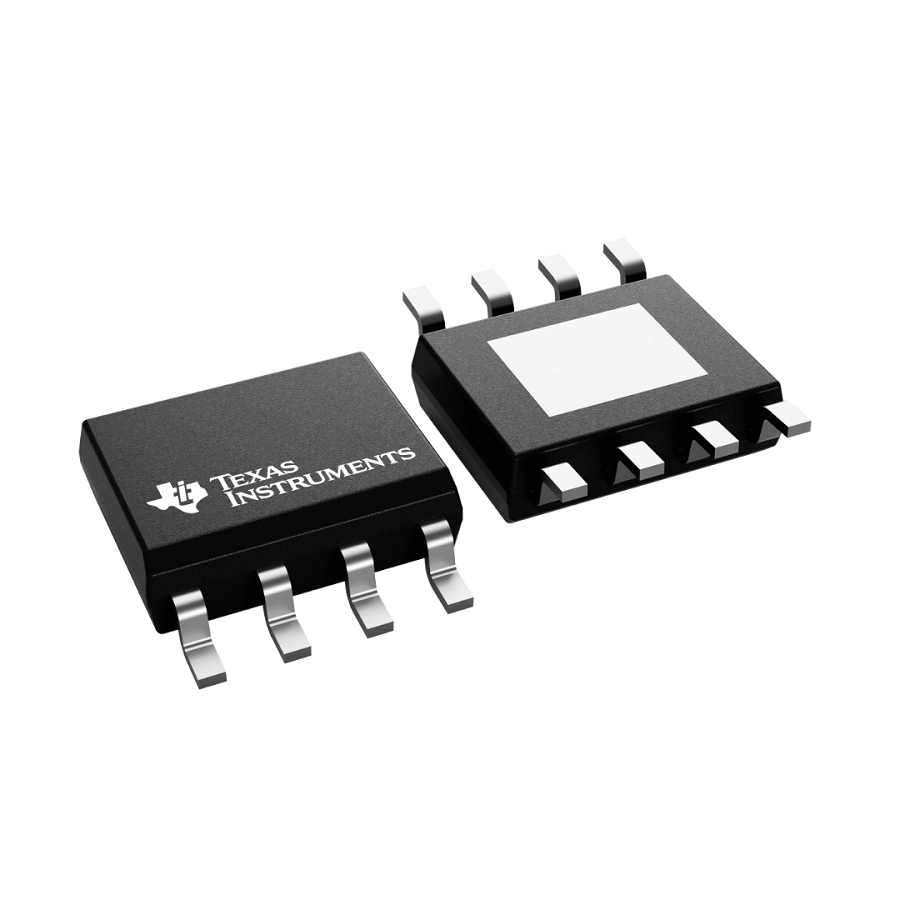

Voltage Regulators - Switching SO-PowerPad-8 SMD/SMT Buck Adjustable 31 V
| Parameter | Value |
|---|---|
| Length | 4.89 mm |
| Width | 3.9 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1.7 mm |
| Packaging | Tube |
| Thickness | 1.48 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 600 kHz |
| Min Input Voltage | 5.5 V |
| Output Current | 3 A |
| Output Voltage | 31 V |
| Operating Supply Voltage | 36 V |
| Output Type | Adjustable |
| Lifecycle Status | Active |
| Max Supply Voltage | 36 V |
| Min Supply Voltage | 5.5 V |
| Max Output Current | 3 A |
| Quiescent Current | 3 mA |
| Synchronous Rectifier | No |
| Topology | Buck |
| Switching Frequency | 500 kHz |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Nominal Supply Current | 3 mA |
| Efficiency | 95 % |
| Min Output Voltage | 1.22 V |
| Max Junction Temperature (Tj) | 125 °C |
| Max Output Voltage | 31 V |
| Max Duty Cycle | 89 % |
| Function | Step-Down |
Stock: 6
Distributors
pcbx
pcbxUnit Price$0.35074
Ext.Price$0.35074
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.35074 | $0.35074 |
| 10 | $0.27484 | $2.74840 |
| 50 | $0.23483 | $11.74150 |
| 100 | $0.20065 | $20.06500 |
| 500 | $0.17144 | $85.72000 |
